CFP-30-3660: 30-36 x 60 Curved Front Renovation Shower Pan
Standard Features

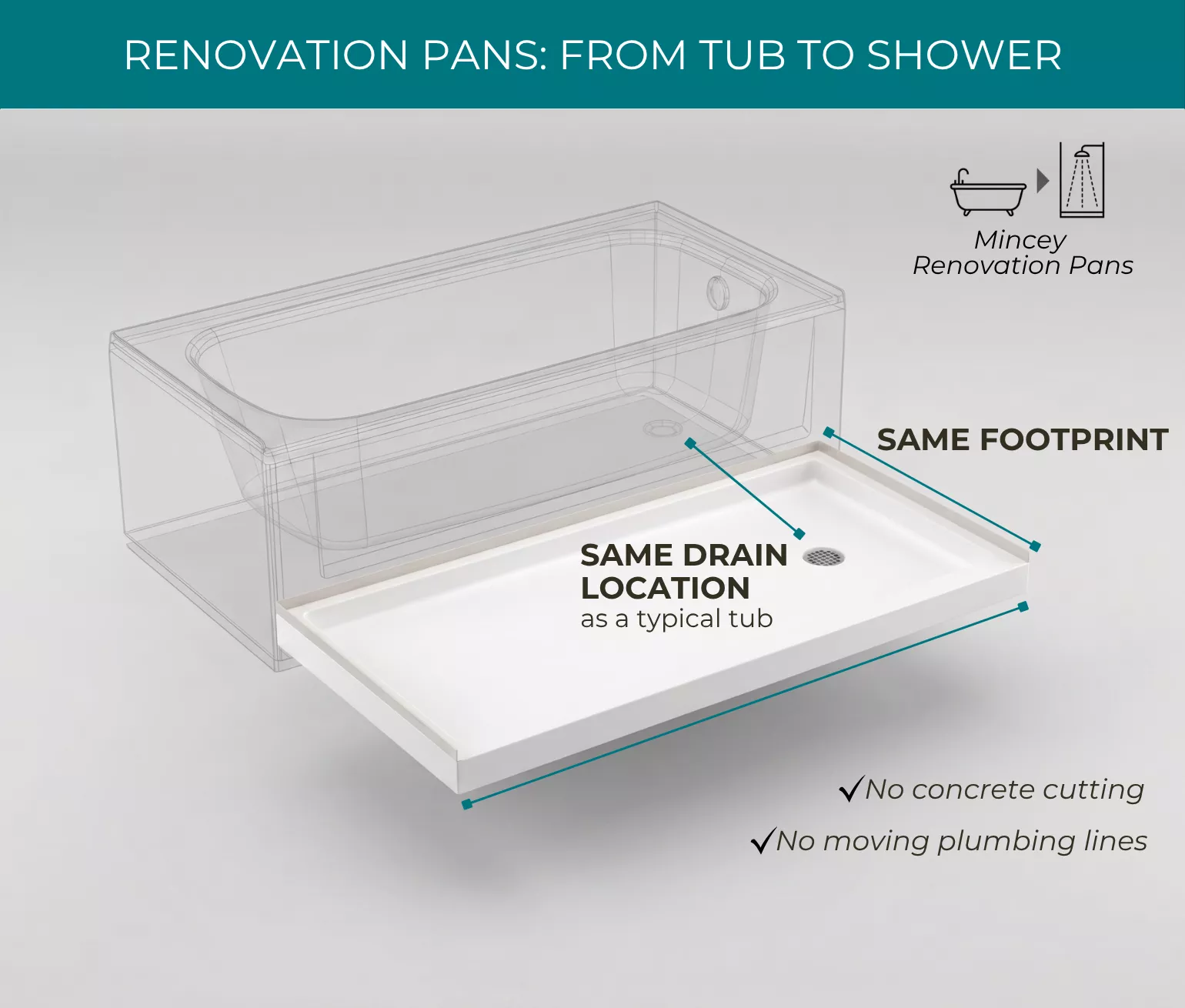

- Optimal for tub-to-shower conversions - drain is in the same place as a typical tub drain
- Curvature provides extra room in the shower
- Solid one-piece cast marble
- Durable gel coat surface
- Pre-leveled - rests on subfloor
- Extremely sanitary
- Will not mold or mildew
- Easy to install
- Maintenance-free
- Manufactured in the U.S.A.
- Recommended: add Shower Pan Liners to protect pans during construction
Applications
- Hospitality | Multifamily | Senior Living | Student Housing | Military Housing
Item Number
- CFP-30-3660-OS-SF-RENO
Technical Specifications
add
| Model | Curved Front |
| Pan Size | 30" - 36" x 60" |
| Material | Cast Marble |
| Floor Pattern | Traditional |
| Finish | Matte, Textured, Non-Slip |
| Backwall | 60" |
| Side Walls | 30" on short side, 36" backwall to center of front curb |
| Drain Location | Offset - (specify left or right) |
| Center of Drain Measures | 15" from backwall, 8 1/2" from side wall |
| Dimensions | NOTE: Finished product dimensions may vary +/- 1/8" from drawings |
| Drain Opening | 3 1/4" |
| Front Curb | 3 1/2" w x 3" h |
| Flange | 1" on side and backwalls - attached at factory |
| Weight | ~ 202# |
| Slope | Pan is sloped toward the drain at 2% |
| CSI Number | 22 42 23 |
Colors
add
Special Notes
add
Standards and Ratings:
- CSA B45-5/IAPMO Z124-2011
- MAS Certified Green. Compliant with ANSI/BIFMA X7.1 Standard
- ANSI A137.1 (average rating of 0.65)
- ANSI A326.3 (average rating of 0.72)
- ANSI/NFSI B101.3 (average rating of 0.66)
Suggested Drains:
- Sioux Chief Mfg. model: 825-2P – PVC
- Oatey part number: 42045 – PVC
- Oatey part number: 42150 – Brass
NOTE: Finished product dimensions may vary +/- 1/8" from drawings
NOTE: Drain is not included with pan
Resources
add
| Download | |||
|---|---|---|---|
| insert_drive_file | #CFP-30-3660-OS-SF-RENO Spec Sheet | cloud_download | mail_outline |
| insert_drive_file | Installation Instructions | cloud_download | mail_outline |
| insert_drive_file | Care and Maintenance | cloud_download | mail_outline |
| insert_drive_file | Master Specifications | cloud_download | mail_outline |
| insert_drive_file | Technical Drawings | cloud_download | mail_outline |
| live_tv | How to install a Mincey Marble Shower Pan | play_circle_outline | mail_outline |
