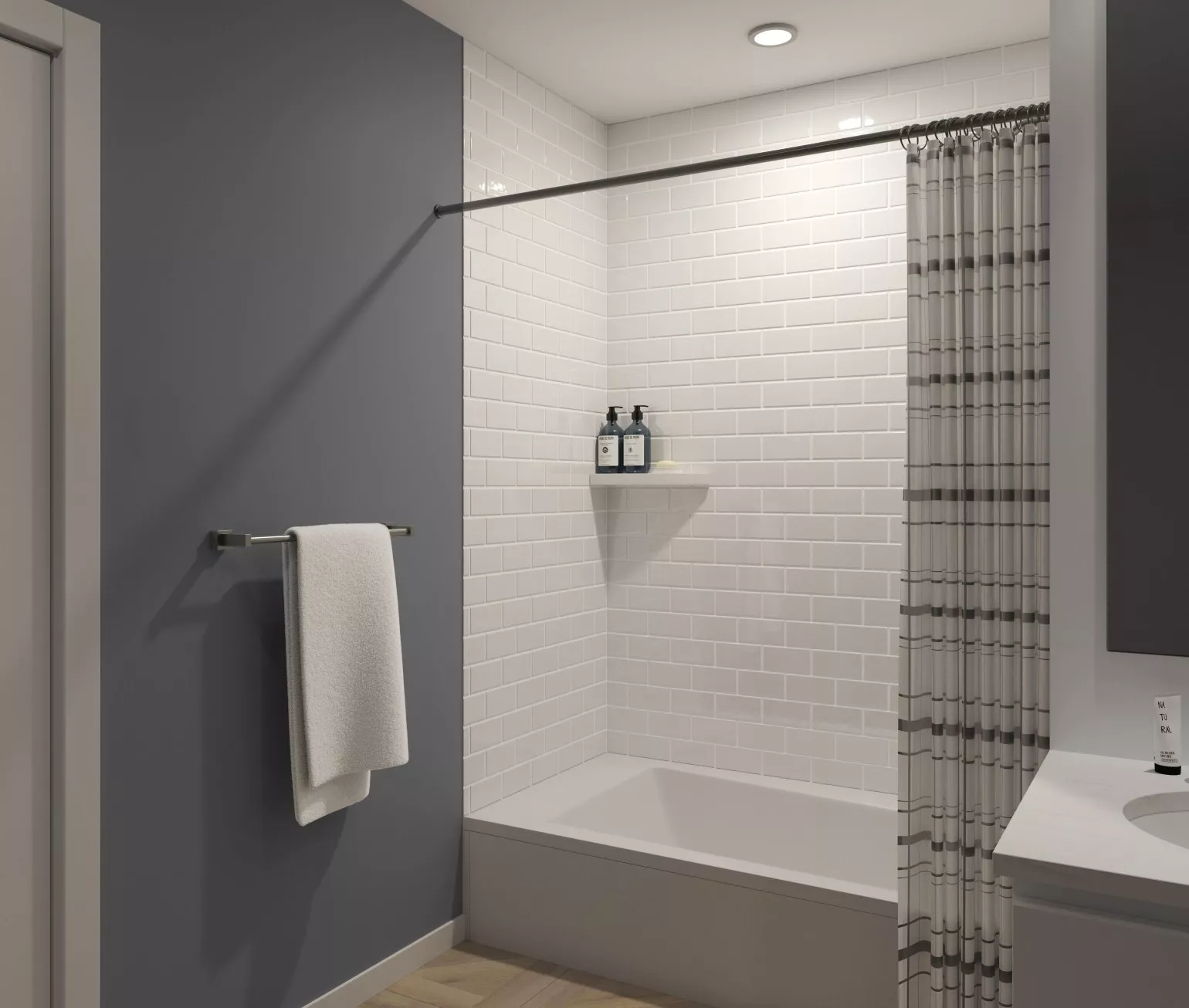

TS-VN: 3x6 Subway Shower Wall Panel System
Standard Features
- 3" x 6" classic staggered brick pattern
- Textured grout lines that look and feel real
- 2" integral bullnose trim on top and exposed edges
- Solid one-piece groutless panels
- Permanently sealed surface
- Extremely sanitary
- Will not mold or mildew
- Oversized - measure, cut and fit on jobsite
- Easy to install
- Easy to maintain
- Manufactured in the U.S.A.
Applications
- Tub and Shower Surrounds
- Hospitality | Multifamily | Senior Living | Student Housing | Military Housing
Item Number
- TS-VN-3x6Subway
Technical Specifications
add
| Model | 3" x 6" Subway |
| Pattern | Staggered simulated brick subway |
| Material | Cast Marble |
| Panel Widths | 32" - designated left and right 38" - designated left and right 50" 61" 63" 66" 98" |
| Height | 32", 38", 50", 61", 63" - up to 101" H 66" - up to 99" H 98" - up to 63" H |
| Thickness | 1/4" |
| Finish | Gloss |
| CSI Number | 06 61 13 |
Colors
add
Special Notes
add
- Material: MINCOR™ - Class A fire rated per ASTM e84: Fire and smoke rated material available.
- MAS Certified Green®. Compliant with ANSI/BIFMA X7.1 standard
- 100% designed and manufactured at our location in the U.S.A. using locally sourced raw materials where possible.
- Recommend all silicone and caulking to match surround color
Resources
add
| Download | |||
|---|---|---|---|
| insert_drive_file | #TS-VN-3x6Subway Spec Sheet | cloud_download | mail_outline |
| insert_drive_file | Installation Instructions - Standard Panel - Extend to Ceiling | cloud_download | mail_outline |
| insert_drive_file | Care and Maintenance | cloud_download | mail_outline |
| insert_drive_file | Master Specifications | cloud_download | mail_outline |
| insert_drive_file | Technical Drawings | cloud_download | mail_outline |
| live_tv | How to Install a 3-Piece Panel System Extending to the Ceiling | play_circle_outline | mail_outline |
