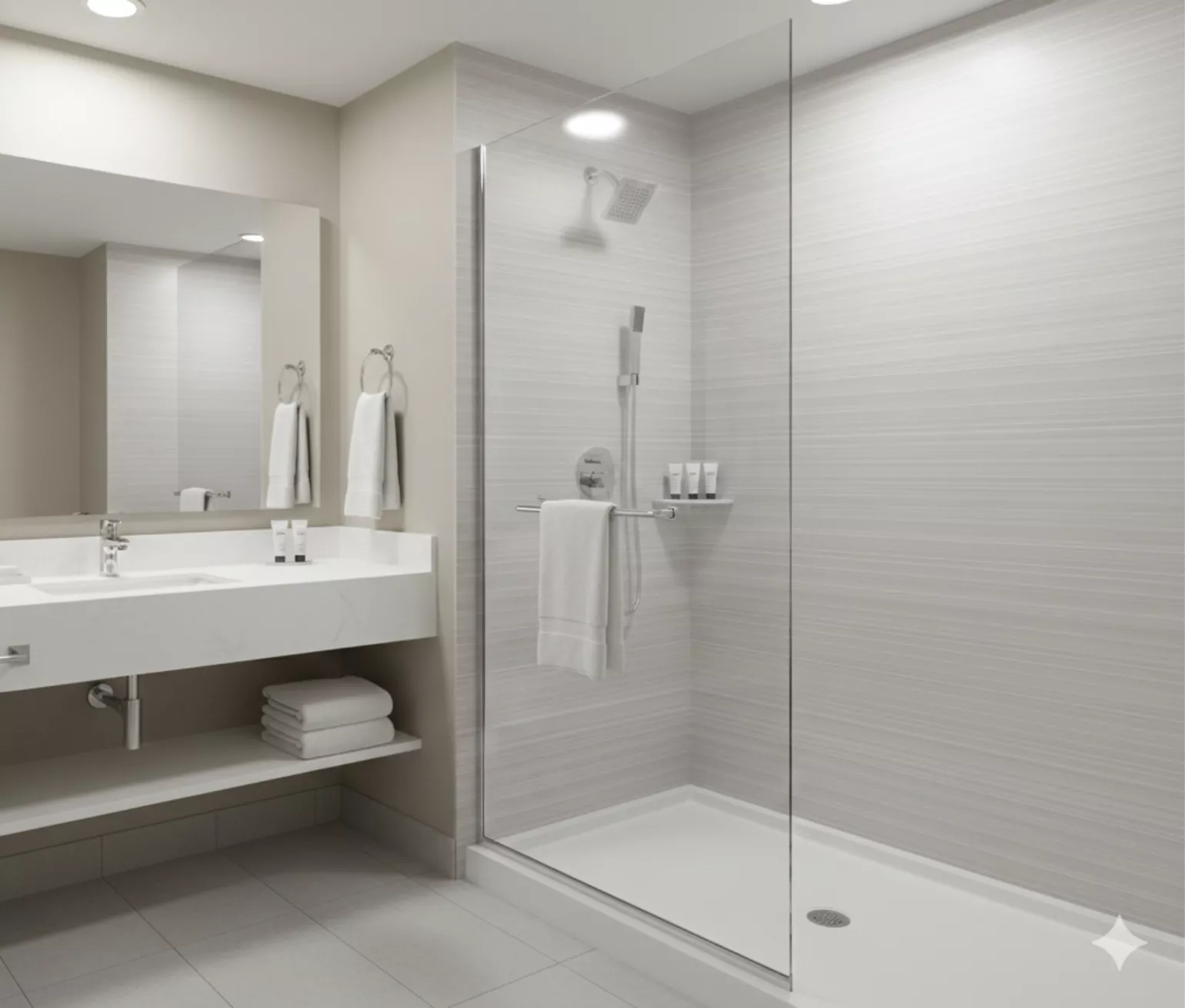

TS-VS: Linear Vision Shower Wall Panel System
Standard Features
- Horizontal textured lines pattern
- Solid one-piece groutless panels
- Permanently sealed surface
- Will not mold or mildew
- Oversized - measure, cut and fit on jobsite
- Easy to install
- Easy to maintain
- Manufactured in the U.S.A.
Applications
- Tub and Shower Surrounds
- Hospitality | Multifamily | Senior Living | Student Housing | Military Housing
Item Number
- TS-VS-LinearVision
Technical Specifications
add
| Model | Linear Vision |
| Pattern | Horizontal textured lines pattern |
| Material | Cast Marble |
| Panel Widths | 34" 38" 48" 62" |
| Height | Up to 96" |
| Thickness | 1/4" |
| Finish | Textured Matte |
| CSI Number | 06 61 13 |
Colors
add
Special Notes
add
- Material: MINCOR™ - Class A fire rated per ASTM e84: Fire and smoke rated material available.
- MAS Certified Green®. Compliant with ANSI/BIFMA X7.1 standard
- 100% designed and manufactured at our location in the U.S.A. using locally sourced raw materials where possible.
- Recommended to use silicone and caulking that matches surround color.
- We recommend using cast marble adhesive for installation.
Resources
add
| Download | |||
|---|---|---|---|
| insert_drive_file | #TS-VS-LinearVision Spec Sheet | cloud_download | mail_outline |
| insert_drive_file | Installation Instructions - Panels with No Grout Lines - Extend to Ceiling | cloud_download | mail_outline |
| insert_drive_file | Care and Maintenance | cloud_download | mail_outline |
| insert_drive_file | Master Specifications | cloud_download | mail_outline |
| insert_drive_file | Technical Drawings | cloud_download | mail_outline |
| live_tv | How to Install a 3-Piece Panel System Extending to the Ceiling | play_circle_outline | mail_outline |
