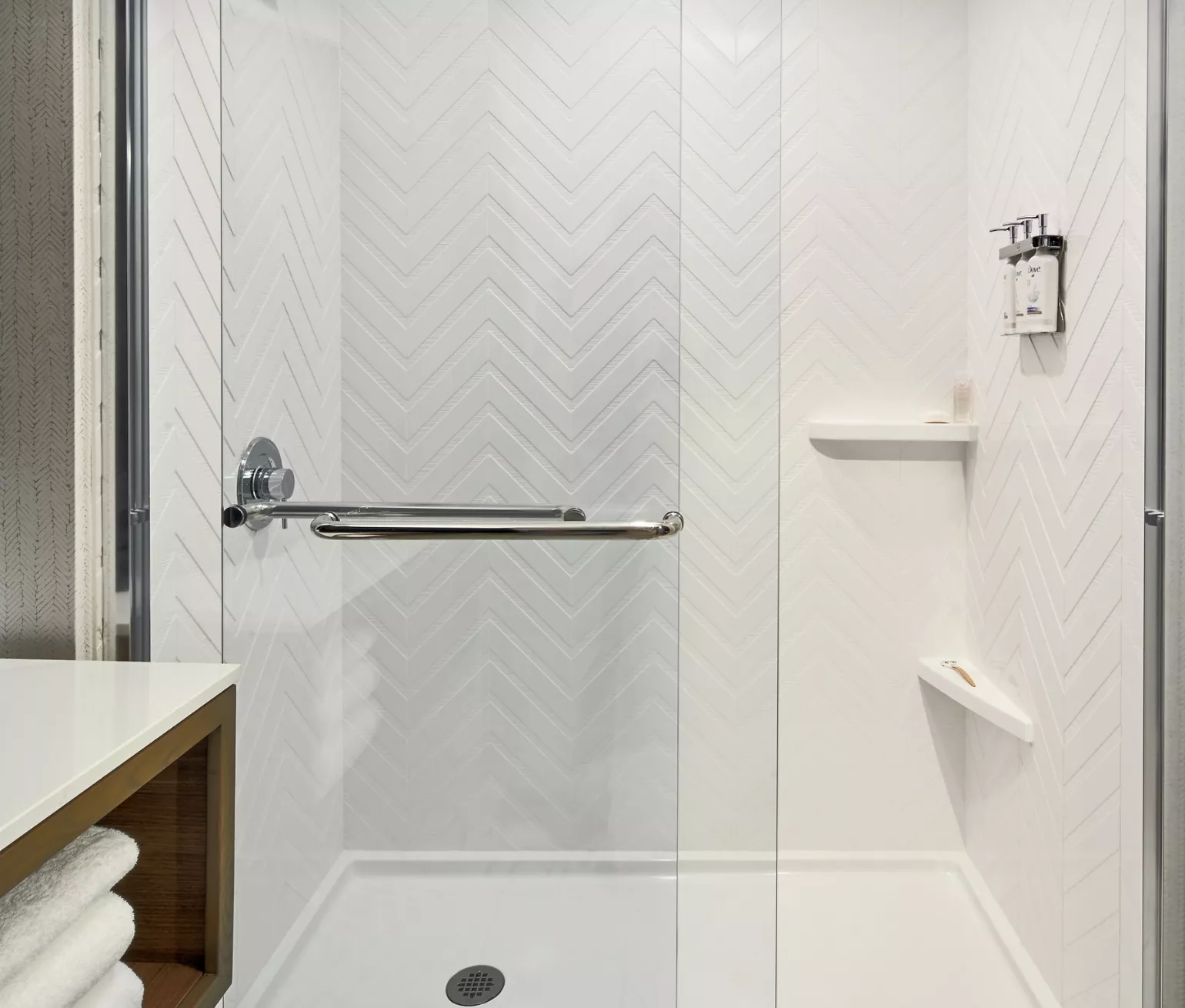

TS-EV: 3x8 Chevron Shower Wall Panel System
Standard Features
- Alternating smooth and textured Chevron pattern
- Solid one-piece groutless panels
- Permanently sealed surface
- Will not mold or mildew
- Oversized - measure, cut and fit on jobsite
- Easy to install
- Easy to maintain
- Manufactured in the U.S.A.
Applications
- Tub and Shower Surrounds
- Hospitality | Multifamily | Senior Living | Student Housing | Military Housing
Item Number
- TS-EV-3x8Chevron
Technical Specifications
add
| Model | 3" x 8" Chevron |
| Pattern | Chevron |
| Material | Cast Marble |
| Panel Widths | 30" - designated left and right 36" - designated left and right 42" 62" |
| Height | 96" max |
| Thickness | 1/4" |
| Finish | Textured Matte and Gloss |
| CSI Number | 06 61 13 |
Colors
add
Special Notes
add
- Material: MINCOR™ - Class A fire rated per ASTM e84: Fire and smoke rated material available.
- MAS Certified Green®. Compliant with ANSI/BIFMA X7.1 standard
- 100% designed and manufactured at our location in the U.S.A. using locally sourced raw materials where possible.
- Recommend all silicone and caulking to match surround color.
- Please Note: The Chevron pattern design makes it impossible to align the angled corner grout lines. For aesthetic purposes, we highly recommend slightly off-setting the corner lines.
Please refer to the installation instructions for the Chevron panel system or contact our office at 770.532.0451 and ask for installation customer service. You will be provided with specific instructions on measuring and cutting the panels to fit the corners.
Resources
add
| Download | |||
|---|---|---|---|
| insert_drive_file | #TS-EV-3x8Chevron Spec Sheet | cloud_download | mail_outline |
| insert_drive_file | Installation Instructions - Chevron-Style Panels - Extend to Ceiling | cloud_download | mail_outline |
| insert_drive_file | Care and Maintenance | cloud_download | mail_outline |
| insert_drive_file | Master Specifications | cloud_download | mail_outline |
| insert_drive_file | Technical Drawings | cloud_download | mail_outline |
| live_tv | How to Install a 3-Piece Panel System Extending to the Ceiling | play_circle_outline | mail_outline |
